Material Front Carbon / Rear Aluminum #6061

Mfg. Method Monocoque / Tig pulse

Frame Size 17'' / 18.5'' / 20''

HT 1 ⅛'' - 1 ½'', FSA NO.57

Seat Post ø30.9

Motor System SHIMANO E8000 / E7000

Battery SHIMANO BT-E8035

Rear Hub 148 x 12mm E-thru system

Dropout Post mount

Tire 27.5'' x 2.8''

Travel 6'' / 150mm

Shock Length 215mm x 63mm

Shock Bushing Upper 30mm / ø8

 Lower 30mm / ø8

Weight 3500g (17'' w/o Shock)

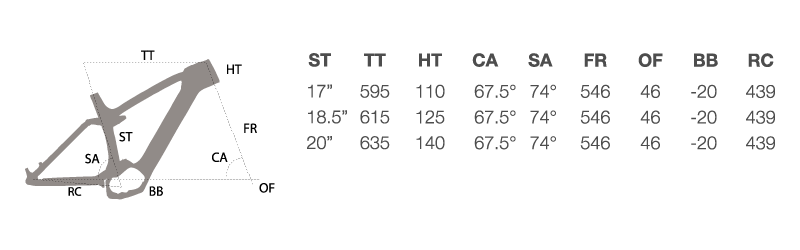

GEOMETRY
